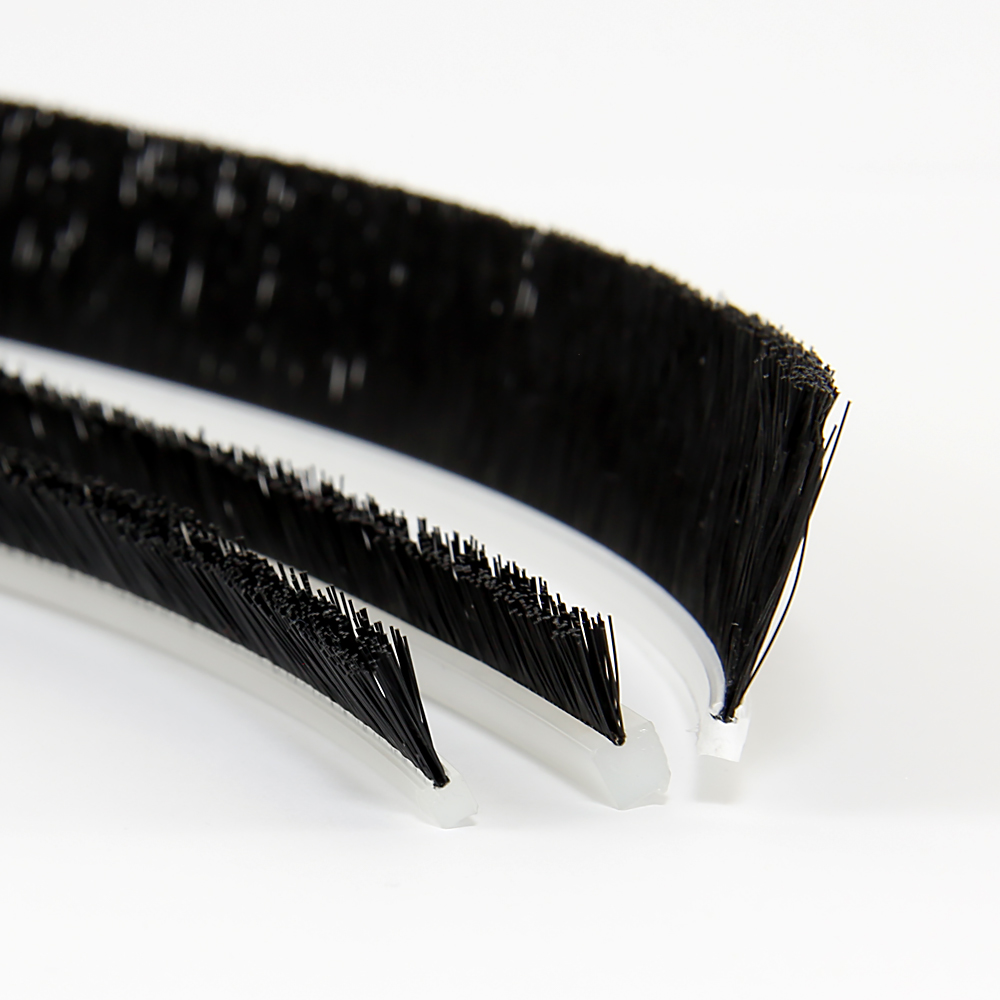

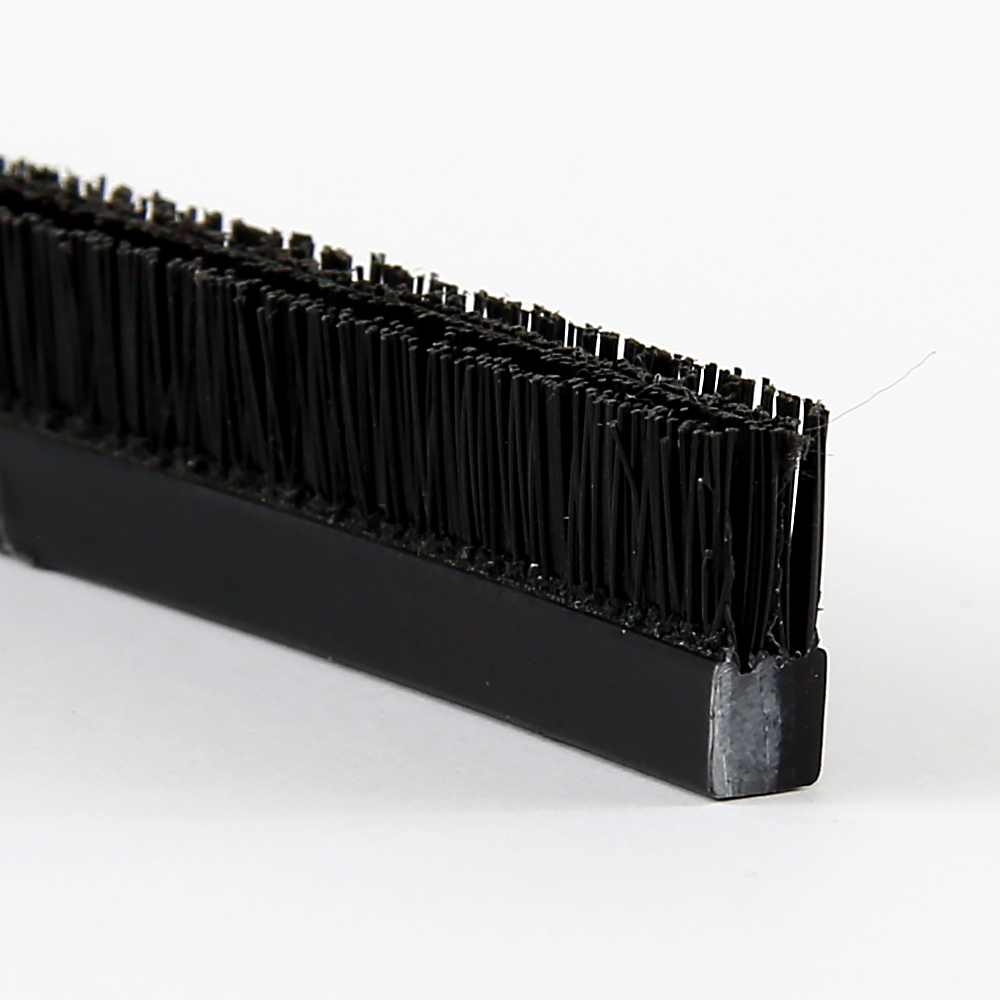

Diamond or square base skirt weatherseals eliminate the need for metal backed products.
Description
- A totally robust weatherseal that uses compacted fibers and Ultrafab’s unique pile directors to build an extremely durable, cost effective product

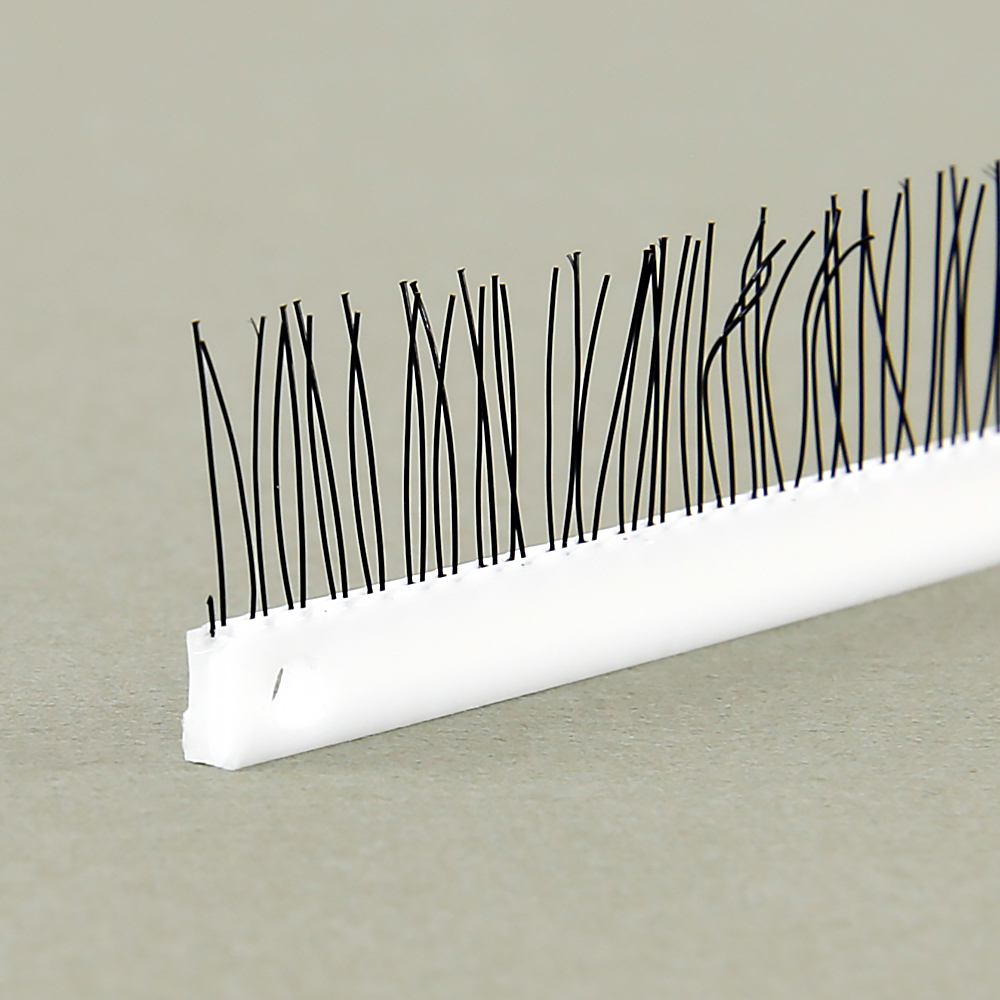

- Extra durable monofilament fibers can be blended with regular fibers for maximum resistance to compression

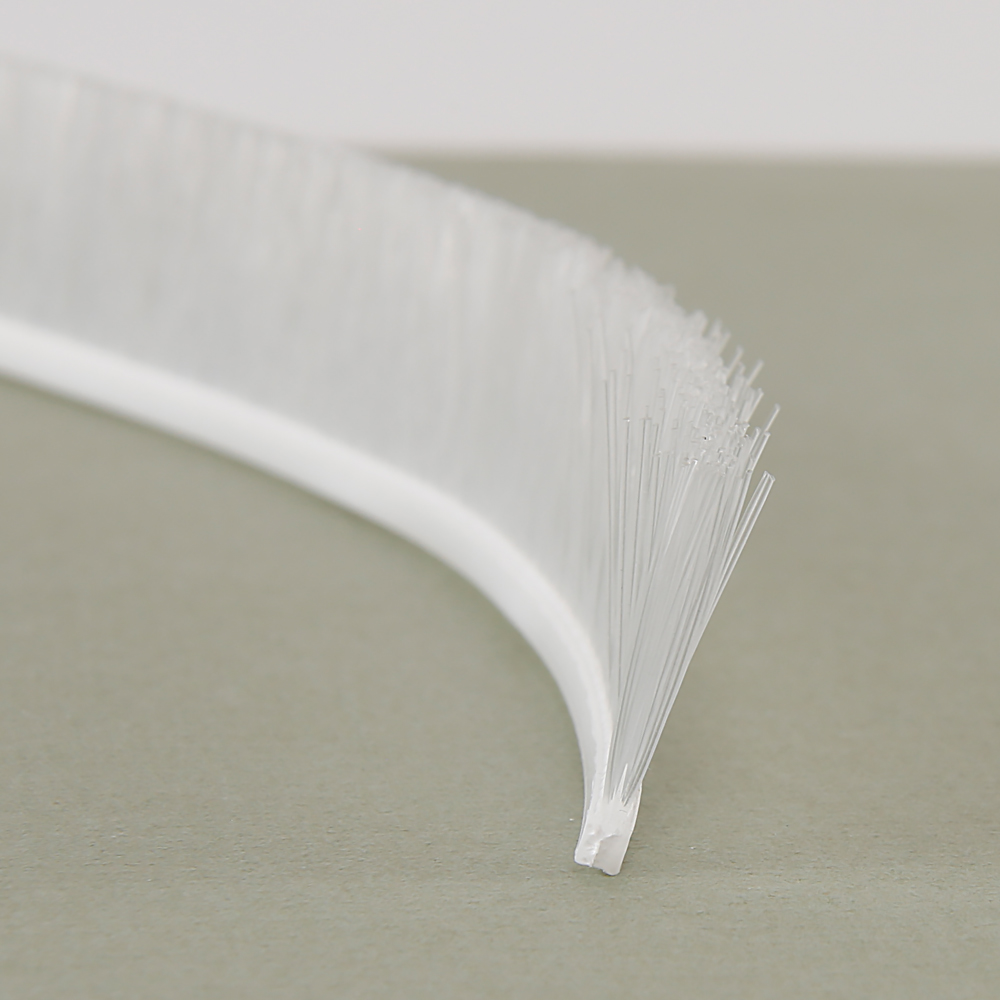

- Fins can be added to promote resiliency and long term protection from the elements
- Solid polypropylene base and “pile directors” provide a rigid backing with no need for an additional metal backing
- Pile height and backing width are always uniform because of Ultrafab’s unique non-woven manufacturing systems
- Q Series pile weatherseal uses round yarns for optimal structural integrity and consistency which assures a tight seal and barrier against air and water infiltration
- Ultrafab’s unique ultrasonic welding assembles the fin, fibers and backing into an integrated, unified assembly that won’t break apart during fabrication or while in use
| Ultra Skirt ® Weatherseal Choices | ||
|---|---|---|
| Pile Heights | Inch Metric |
.300″ to .750″ 7.62mm to 19.05mm |
| Pile Materials | Standard polypropylene | – with monofilaments – with fin |
| Pile Densities | 3 common densities available | |
| Backing Options | Diamond Square |
.115 x .115 inch / (2.92 x 2.92 millimeters) .115 x .115 inch / (2.92 x 2.92 millimeters) |
| Colors | Standard | Black, White, Grey, Beige, Brown |
