Angle Pile

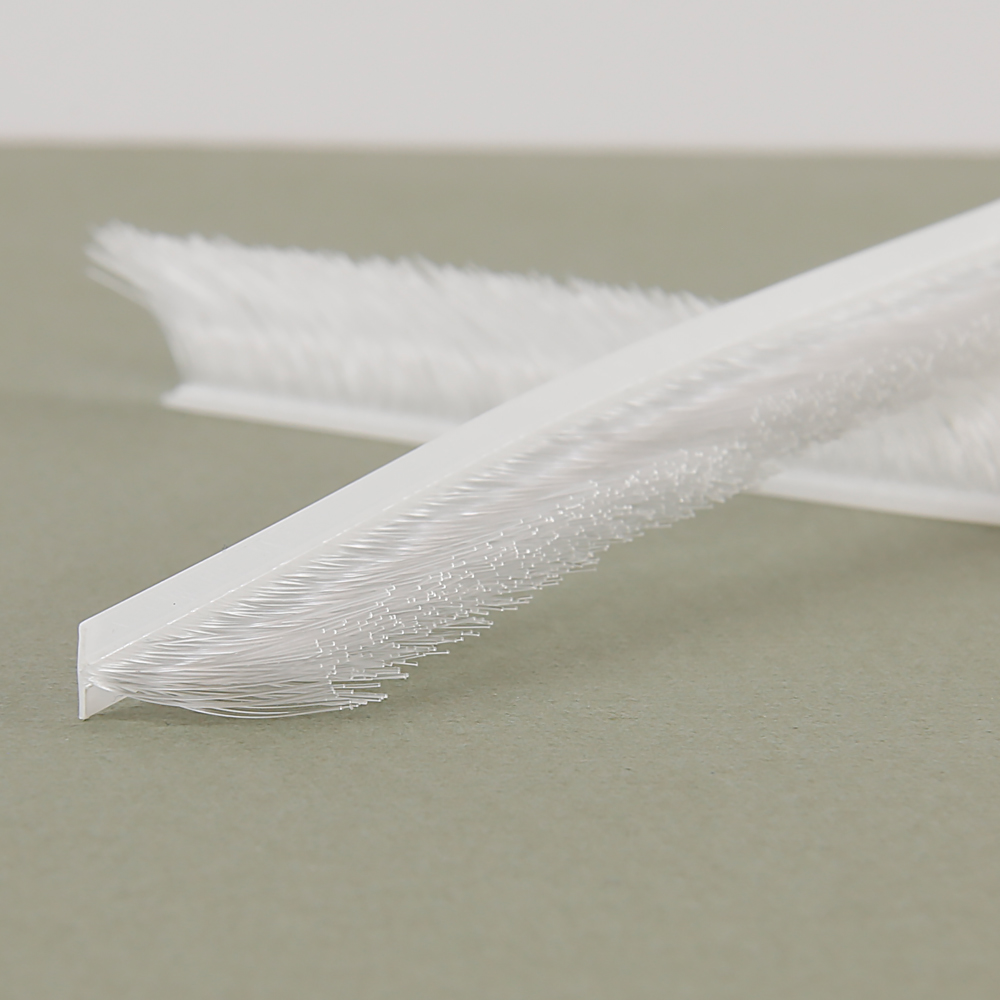

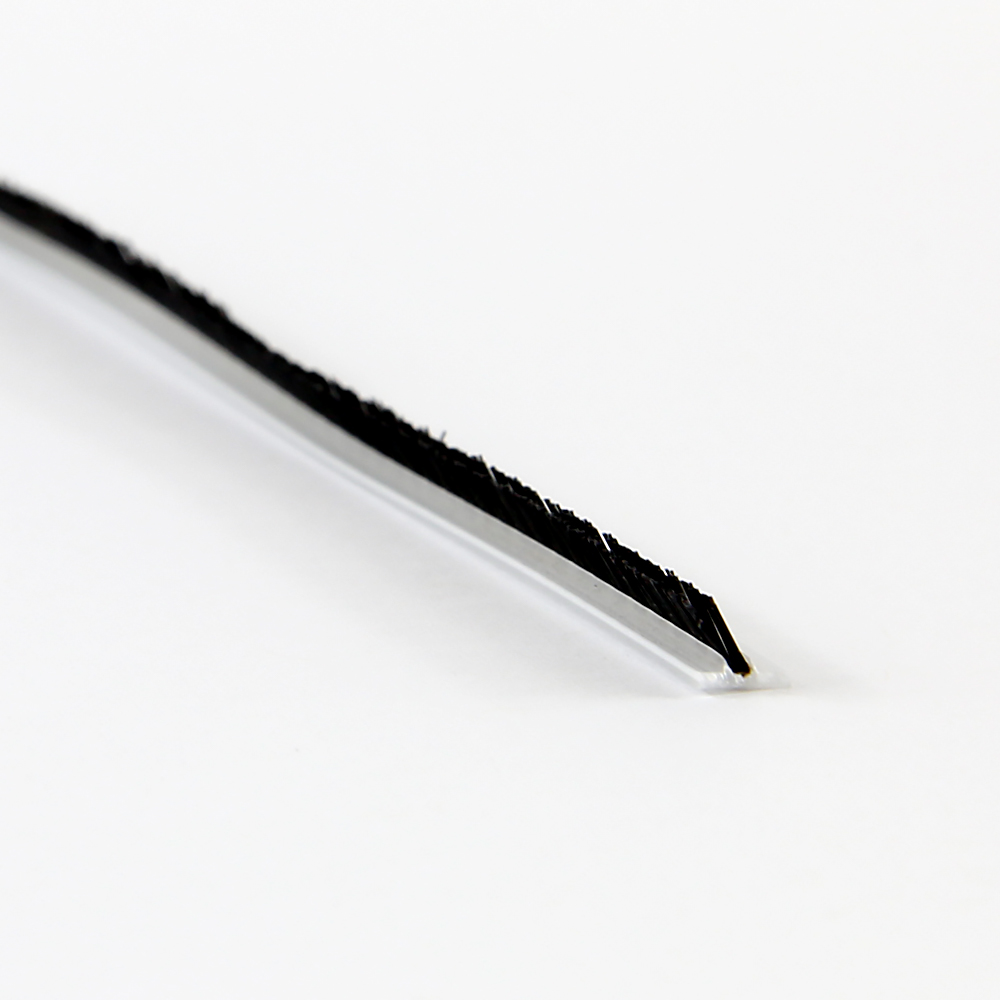

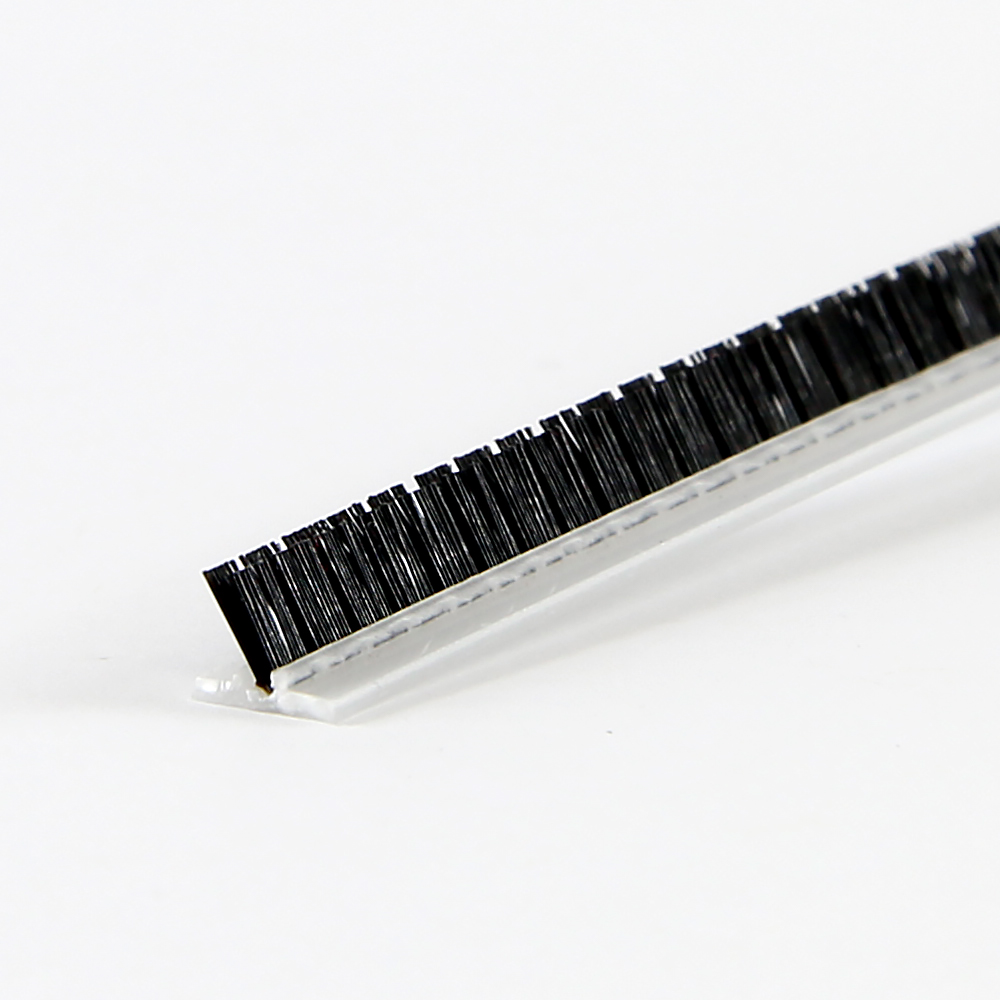

The ANGLE PILE is a monofilament and/or fiber mixed pile weatherseal. It is a specialized solution for roll screens, bug seals, ventilating seals, and water management, combining monofilament strands and fiber pile for durability and performance. The monofilament locks securely into the metal or fiber screen grid, while the fiber pile holds the screen in place and enhances the insect barrier.
Available in 45°, 60°, and 75° configurations, it ensures versatility and seamless integration into various systems, making it ideal for residential and commercial applications requiring airflow and water movement control.
Features & Benefits
Designed to hold screen material in place
- Monofilament strands lock into screen grid
- Use with either metal or fiber screen material
- Pile holds screen in place
- Pile becomes part of insect barrier
Versatility to fit your application needs
- Three angle options available: 45°, 60°, 75°
- Can combine pile and monofilament fibers
- Filament placement can be continuous or intermittent
- Available with center fin
- Available with T-slot or pressure sensitive adhesive backing
- Solid polypropylene construction; nylon available for demanding applications
- High UV and compression set resistance
- Pile height and backing width are always uniform because of Ultrafab’s unique non-woven manufacturing systems
- Ultrafab ultrasonically welds and assembles the fibers and backing into an integrated, unified assembly that will not break apart during fabrication or while in use
- Ultrafab’s exclusive “Pile Directors” ensure ease of insertion and superior long term performance
- NEW, state-of-the-art automation equipment designed specifically for Angle Pile reduces labor costs, increases throughput and reduces repetitive motion injuries.
- Use Ultrafab’s Application Engineering and Testing Facility to test your product ideas.
- Eliminate the high cost of independent test labs for your research and development.
- Reduce your time to market with new products
- If you need a new or custom seal, we’ll help you design a sealing solution to achieve the performance you need, call us at 1-800-535-1050
Typical cross-section of a roll screen assembly using Ultrafab’s New Angle Pile
Specifications
| Angle Pile Configuration Choice | |
|---|---|
| Pile Heights: | 180 to .750 inch | 4.50 to 19.05 mm |
| Angles: | 45°, 60° or 75° angles available, options include fin, gaps or double pile |
| Pile Densities: | Custom |
| Pile Placement: | Continuous or Intermittent |
| Backing Widths: | .187 or .270 inch (4.75 or 6.86 millimeters). Custom backing widths available |
| Backing Options: | Standard T-slot or Adhesive Back |
| Standard Colors: | Black, White, Grey. Clear |
| Materials: | Polypropylene or Nylon |
| Packaging: | Reels or Cut-to-Length |
