ULTRA REACH® Weatherseals

Looking for something else? Need something you don't see? Ultrafab offers a wide range of products beyond those shown here. Contact us for more information.

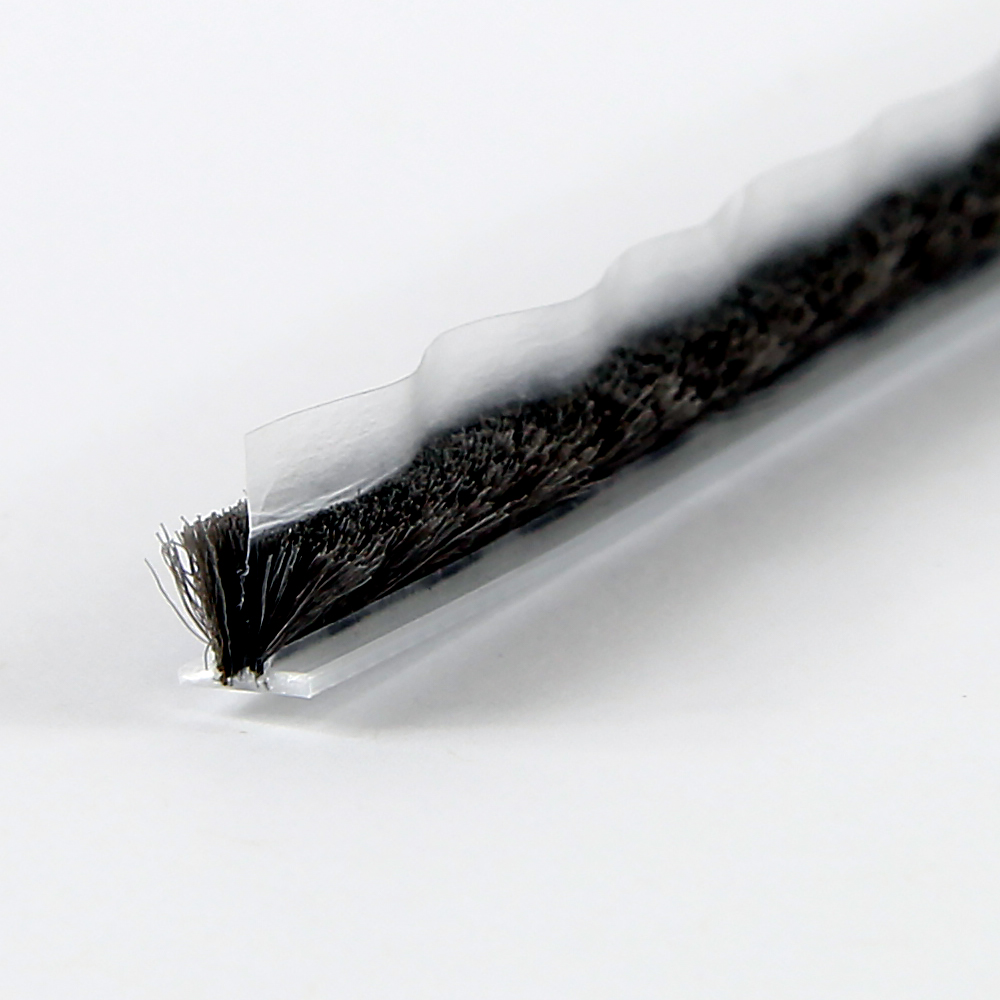

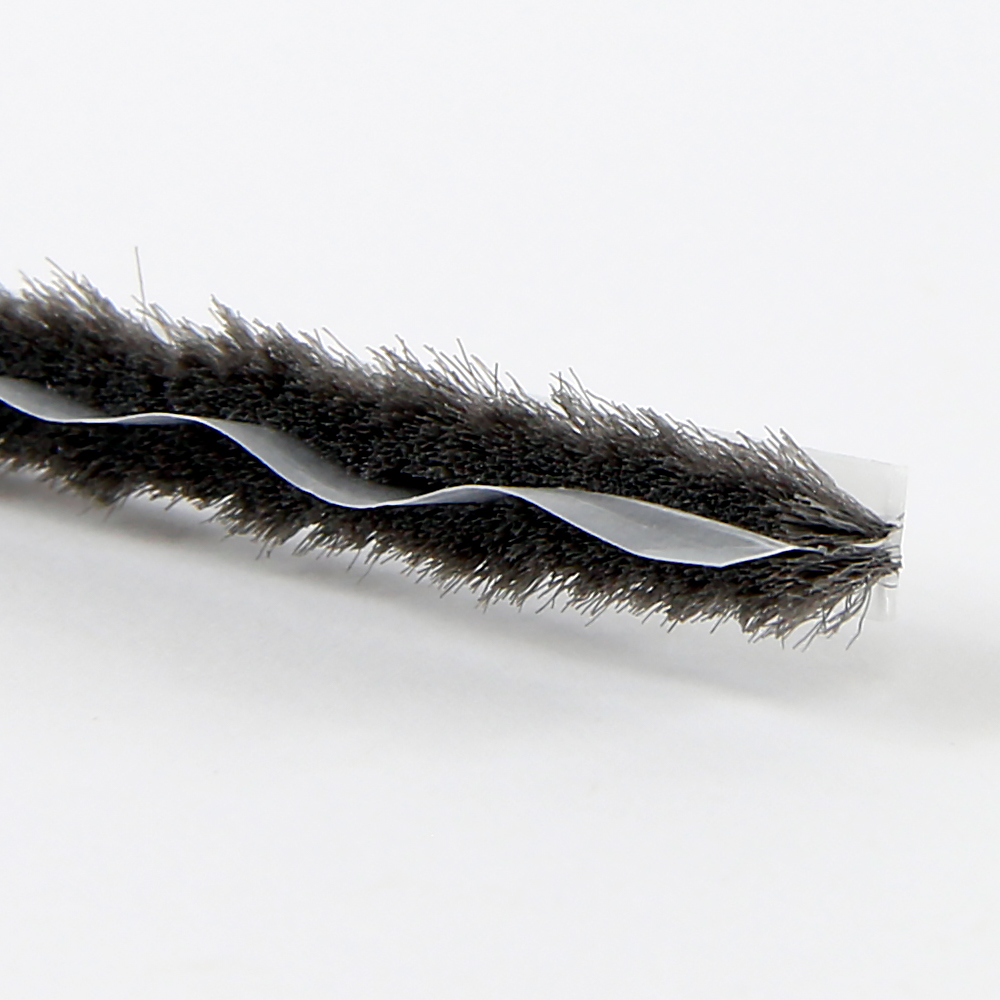

Ultra long angled fin weatherseals provides an excellent seal.

Ultrafab’s unique ultrasonic welding assembles the fin, fibers and backing into an integrated, unified assembly that won’t break apart during fabrication or while in use.

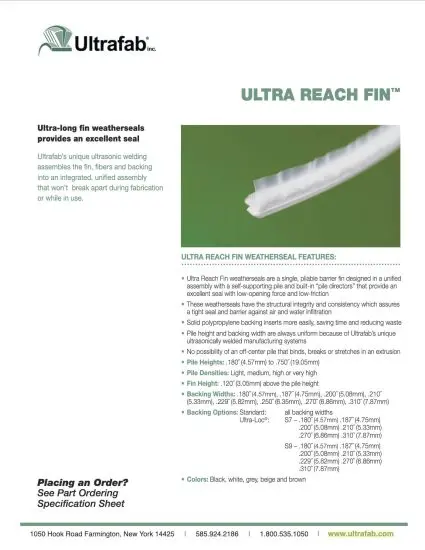

Downloadable PDF

Category:

Description

  • A single pliable barrier fin in a unified assembly with self-supporting pile and built-in “pile directors”, provides an excellent seal with low opening force and low friction
  • Solid polypropylene backing inserts more easily, saving time and reducing waste
  • Pile height and backing width are always uniform because of Ultrafab’s unique non-woven manufacturing systems
  • ULTRA REACH® weatherseals have the structural integrity and consistency which assures a tight seal and barrier against air and water in filtration
  • No possibility of off-center pile that binds, breaks or stretches in an extrusion
  • Need more fins or a softer fin? Ask about ULTRA SOFT FIN®, TRI-FIN®, or side fins
ULTRA FIN® Weatherseal Choices
Pile Heights Inch
Metric
.180″ to .750″
3.30mm to 19.05mm
Pile Densities Light, Medium, High or Very High
Standard Backing Widths Inch
Metric
.187″ | .200″ | .210″ | .229″ | .270″ | .310″
4.75mm | 5.08mm | 5.33mm | 5.82mm | 6.86mm | 7.87mm
Backing Options Standard All backing widths
T-Loc® S7 – All standard backing widths except .229″; max pile height .500″
S9 – All standard backing widths including .229″; max pile height .500″
Roll-Loc® All standard backing widths; Max pile height .500″
Adhesive Available on .187″, .270″ and .310″
Colors Standard Black, White, Grey, Beige, Brown
