Ultra Fin Weatherseals
Ultrafab Product Categories
Looking for something else? Need something you don't see? Ultrafab offers a wide range of products beyond those shown here. Contact us for more information.

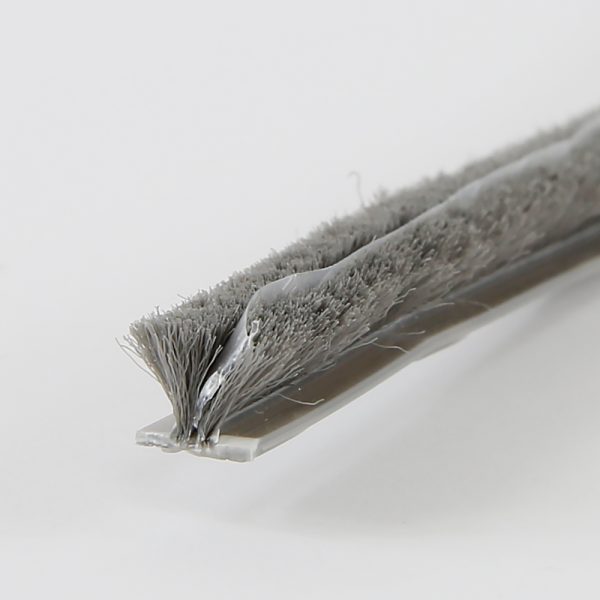

Finned Pile Weatherseals are an excellent product for all windows and doors, including patio doors. Product will reduce air and water infiltration. It will also effectively reduce noise from outside the home.
Available in transparent film only.
For online orders, this product is available in gray pile only.
$8.99 – $79.50

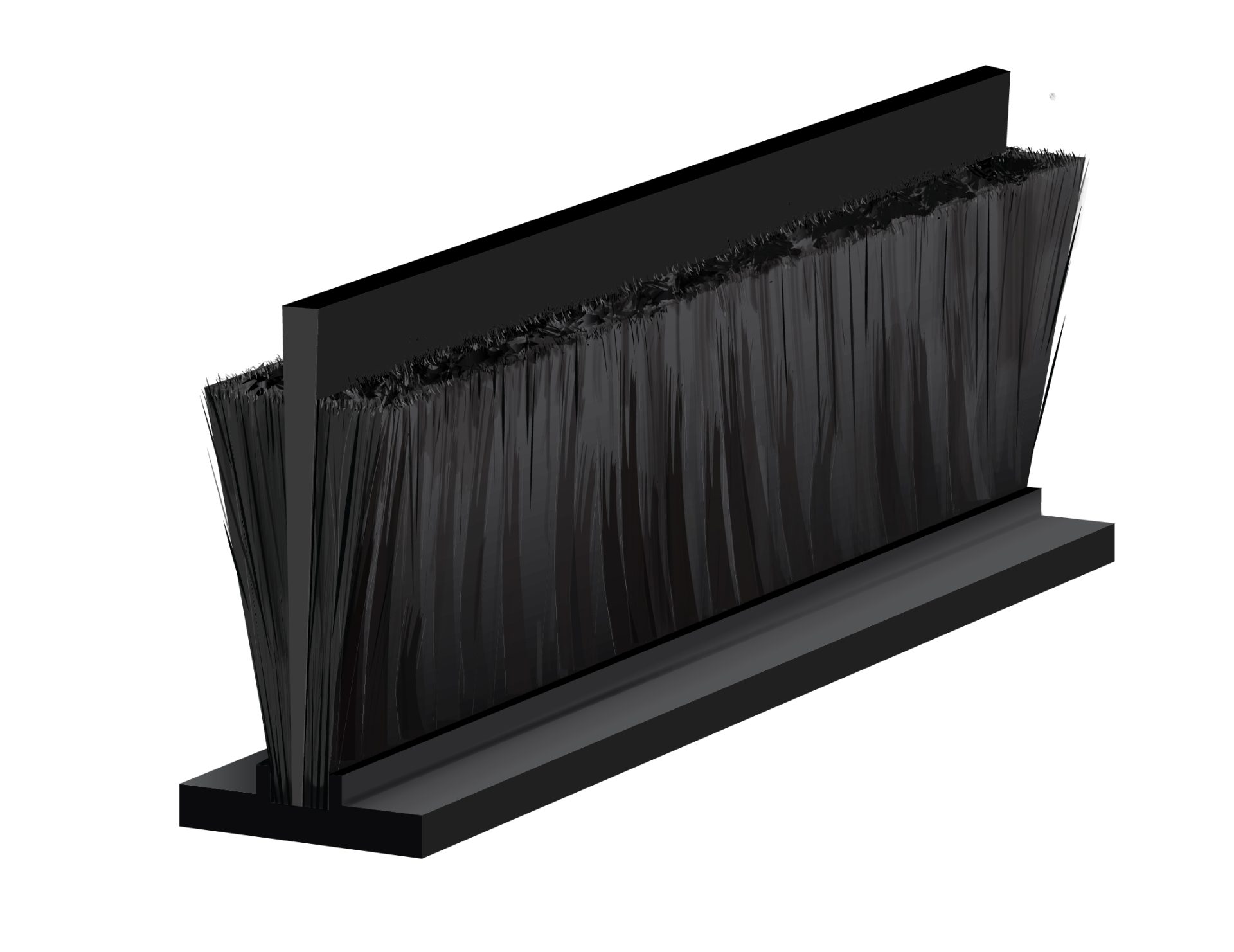

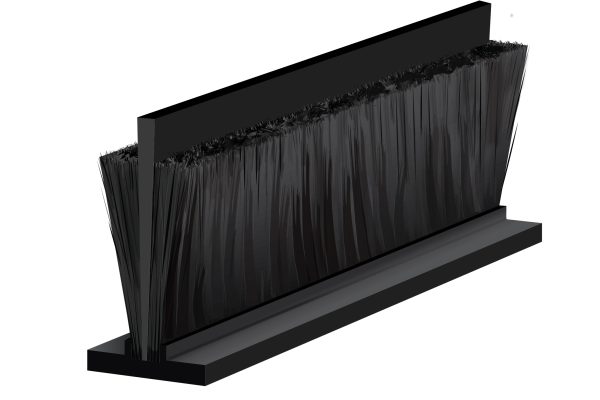

- A single, pliable, barrier fin in a unified assembly with self-supporting pile, and built-in “pile directors”, provides an excellent seal with low opening force and low friction
- Solid polypropylene backing inserts more easily, saving time and reducing waste
- Pile height and backing width are always uniform because of Ultrafab’s unique non-woven manufacturing systems
- Ultra Fin® weatherseals have the structural integrity and consistency which assures a tight seal and barrier against air and water infiltration
- No possibility of off-center pile that binds, breaks or stretches in an extrusion
- Ultrafab’s unique ultrasonic welding assembles the fin, fibers and backing into an integrated, unified assembly that won’t break apart during fabrication or while in use
- Need more fins or a softer fin? Ask about Soft Touch Fin®, Tri-Fin®, or side fins
|Ultra Fin® Weatherseal Choices|
|.130″ to .750″
3.30mm to 19.05mm
|Pile Densities||Light, Medium, High or Very High|
|Standard Backing Widths||Inch
|.187″ | .200″ | .210″ | .229″ | .270″ | .310″
4.75mm | 5.08mm | 5.33mm | 5.82mm | 6.86mm | 7.87mm
|Backing Options||Standard||All backing widths|
|T-Loc®||S7 – All standard backing widths except .229″; max pile height .500″|
|S9 – All standard backing widths including .229″; max pile height .500″|
|Roll-Loc®||All standard backing widths; Max pile height .500″|
|Adhesive||Available on .187″, .270″ and .310″|
|Colors||Standard||Black, White, Grey, Beige, Brown|
