FIVE FIN®

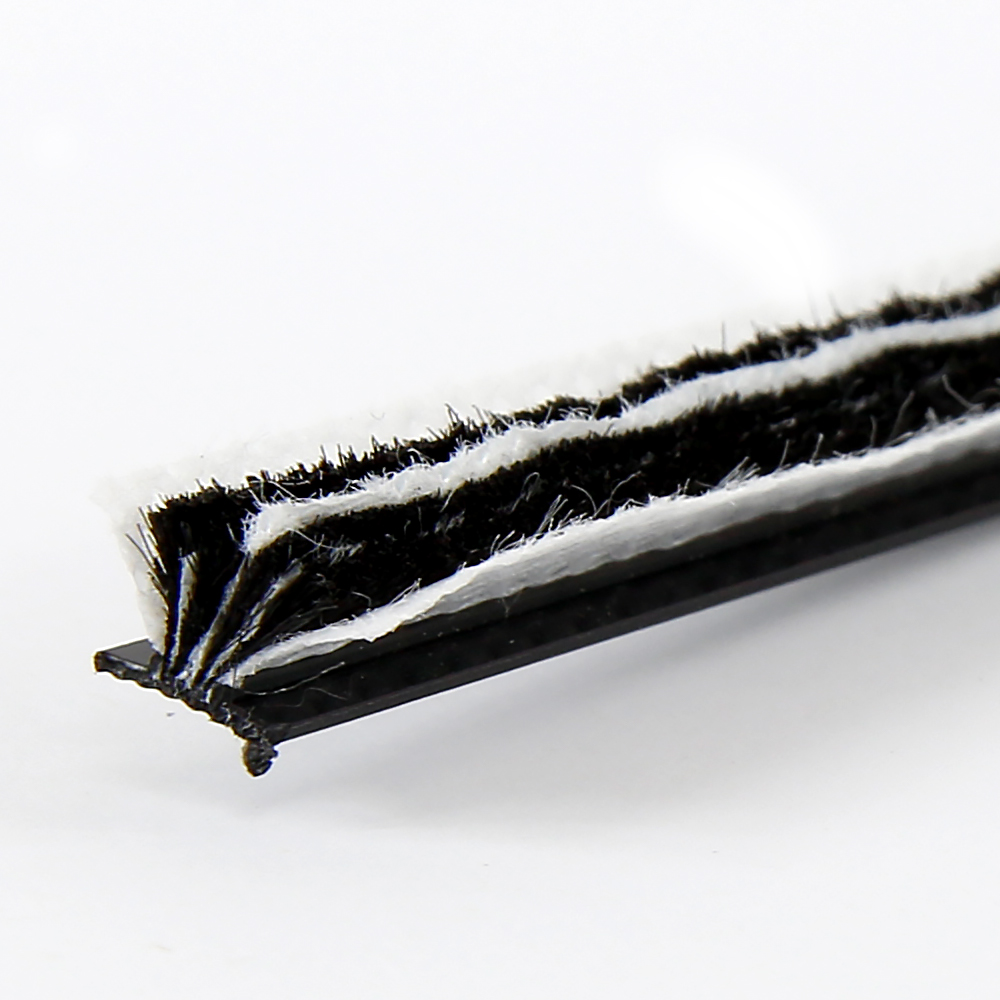

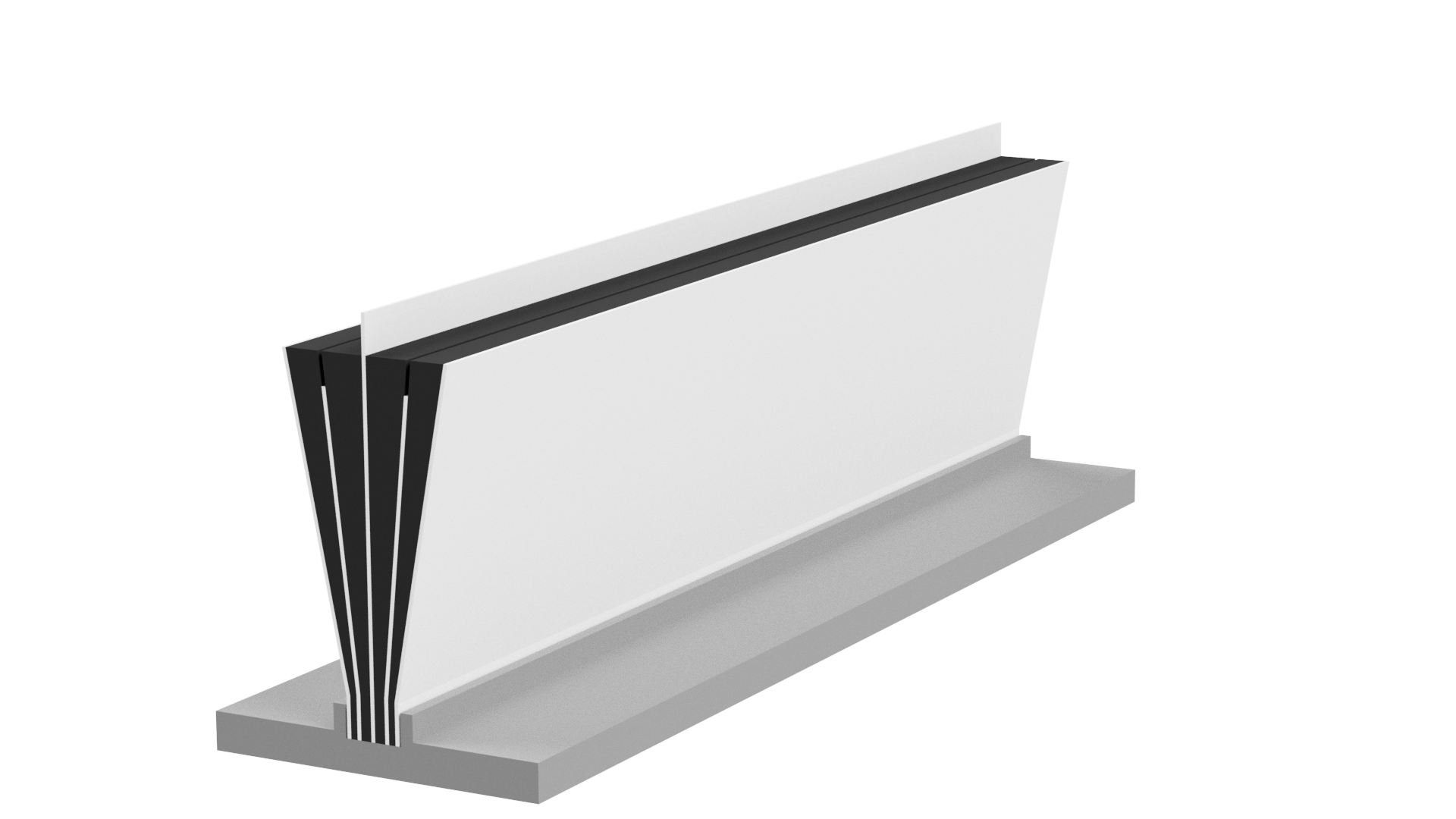

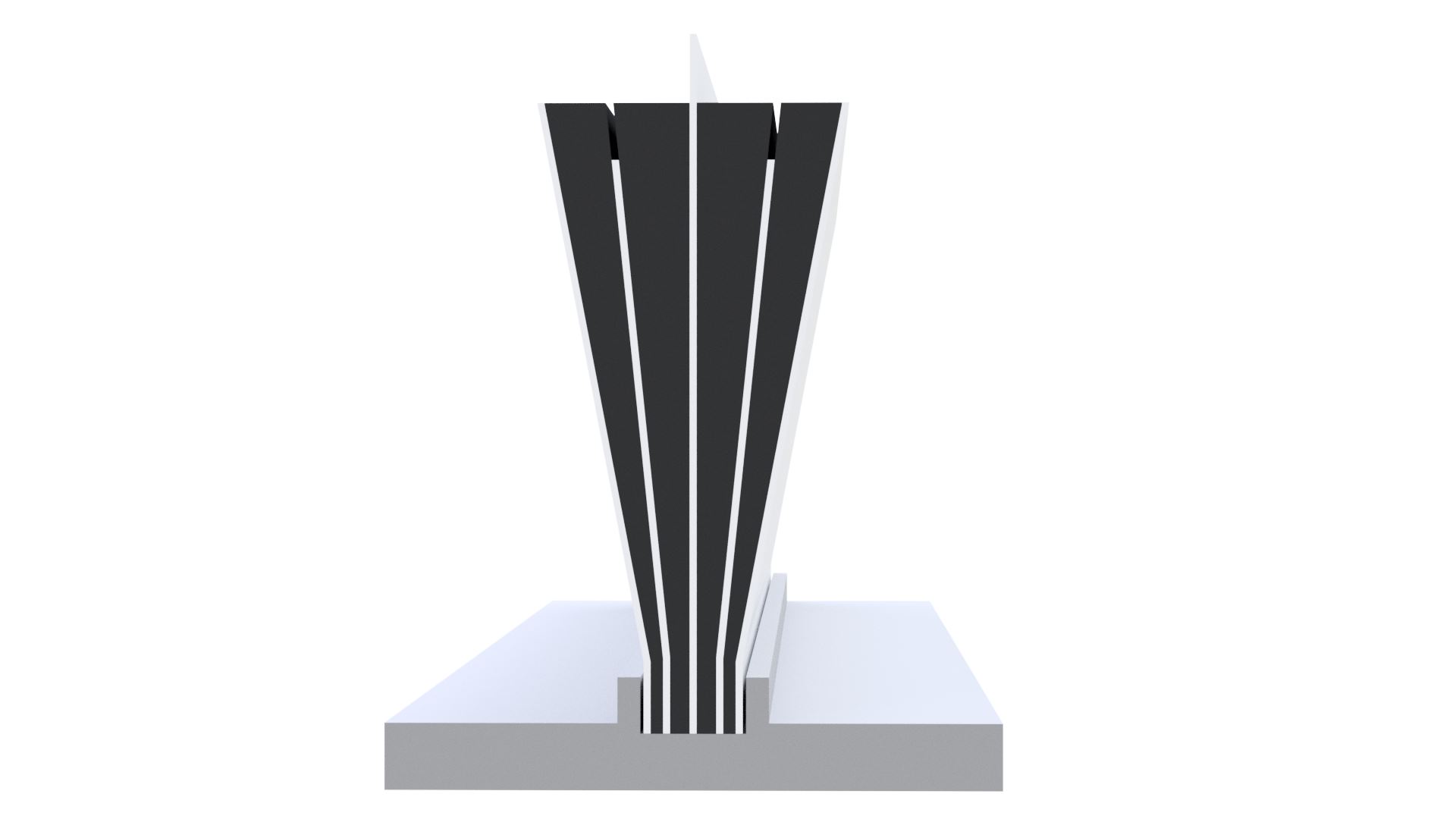

The FIVE FIN™ Weatherseal is a durable and advanced solution for windows and doors offering exceptional performance in acoustical and high-traffic commercial applications. Five integrated fins provide superior sealing, reducing air and water infiltration while significantly minimizing noise.

Available in ULTRA SOFT FIN® for low-friction, smooth operation, this weatherseal combines innovation and versatility to meet the demands of both residential and commercial settings.

Features & Benefits

  • Tests indicate at least a 20% reduction in air infiltration as compared to single center fin.
  • FIVE FIN™ and Multi-Hollow bulb seal combinations tested as well as current acoustic seals in the market.
  • The FIVE FIN™ construction helps reduce vibration which aids in the acoustical value.
  • No binding or breaking during insertion, which increases through-put and leads to reduced waste and lower costs.
  • Built in “pile directors” reduce compression set.
  • Covered under the AAMA 701-11 VCL testing standard.
  • All FIVE FIN™ seals have silicone treated pile fibers to repel moisture.
Request a Quote

Downloads

Download
Request a Quote

Usage

This product is recommended for:

Request a Quote

Available Options

Adhesive Backed

For applications without T-slots or kerfs, Ultrafab offers adhesive-backed solutions, including standard PSA, foam padded PSA and VHB (Very High Bond) PSA. These adhesives ensure secure bonding and adaptable performance for various residential, commercial, and architectural needs.

GOLD SERIES™

The Gold Series™ weatherseal is designed for extreme weather conditions, offering durability and high resistance to mold, mildew, and fungus. It allows the use of black, white or grey pile, previously unsuitable for demanding environments, and is available in ULTRA SOFT FIN® and ULTRA FIN® versions. With specially marked fenestration products against harsh elements like sunlight, coastal exposure, humidity, and snow.

ULTRA FILL®

ULTRA FILL is a semi-rigid material that is added to the bottom of the ULTRA PRO U shaped backing to increase friction once pile is inserted into a profile. This high friction material aggressively eliminates movement of the pile during window processing. This process meets the demands of deep T-slot configurations while ensuring zero pull from the end of the profile to eliminate waste during cutting operations.

ULTRA LOC®

Ultrafab’s backing option features alternating tabs on both sides to secure the backing in place, even when T-slots are slightly oversized. It comes in three versions: S7 with .015″ tabs, S9 with .025″ tabs, and S10 with .030″ tabs, ensuring adaptability to different applications and tolerances.

ULTRA PRO®

This U-shaped backing option is available across all product lines. Allowing for on-line insertion in extrusion and pultrusion applications, securing the weatherstrip in place to prevent fallout during window fabrication and eliminating the need for both staking and manual insertion. The backing size is customizable to accommodate different T-slot geometries.

Related products

Looking for something else? Need something you don't see?

Ultrafab offers a wide range of products beyond those shown here. Contact us for more information.

Ultrafab Innovations

Leveraging cutting-edge technologies, Ultrafab is committed to driving innovation and operational excellence. These advancements enable us to automate complex tasks, enhance final product performance, and provide unparalleled efficiency across our processes

Ultrasonic Welding

Ultrafab uses ultrasonic welding to enhance the durability and performance of our products. This advanced process employs high-frequency vibrations to fuse materials together without adhesives or fasteners, ensuring precise and reliable bonds and preventing separation during fabrication or use. From weather seals to specialized components, ultrasonic welding enhances product integrity and durability. By leveraging this technology, Ultrafab achieves superior performance and consistency in our manufacturing process compared to our competitors.

3D Additive Manufacturing

By utilizing 3D printing, Ultrafab efficiently designs and produces precise components for our production equipment. Additionally, this technology allows for the rapid creation of intricate, quick-turn tooling and fixtures for custom prototypes. This results in the ability to provide fit and form samples at reduced costs and in a shorter timeframe.

Rapid Prototyping

Ultrafab’s rapid prototyping quickly develops and qualifies new product concepts, allowing for faster iteration and refinement. Ultrafab is home to an experienced onsite R&D team and model shop, equipped with routers, lasers, robotics, and automation. By employing advanced technologies, functional models are created to identify design flaws early, streamline production processes, and shorten development time.

Laser Cutting

Laser cutting offers exceptional precision and customization, allowing for the creation of intricate shapes and tailored designs to meet specific needs. This method ensures clean, accurate cuts across various materials, making it ideal for producing components with unique specifications.

Dedicated Design Services

There is no standard sealing system that works for all applications. Ultrafab’s specialty products division provides innovative and timely solutions for a broad variety of applications. We have onsite engineers and product development staff to help determine exact solution for an application. Ultrafab also carries ready-to-ship samples of standard product offerings to help guide decision making. Contact us today.
